CM Series

THE CM 3 COMPACT MODULAR VACUUM LIFTING SYSTEM takes skid steer attachments to a new level! Easily adaptable to multiple applications and host machines, the CM 3 features rugged all-steel construction to handle materials up to 6,600 lb (3 tonne). The first vacuum lifting solution of its kind, the patent pending CM 3 is adaptable to a wide variety of material handling needs, allowing larger skid steers and track loaders to lift concrete slabs, steel plates and pipe with ease.

Hydraulically driven vacuum pump operates using the auxiliary hydraulics from the host machine (minimum 10 GPM required with maximum 3,000 psi)
Weighs the same as a standard bucket so there is no change in lift capacity of the host machine
Includes quick-connect hydraulic hoses and factory pre-set flow control valve to ensure optimal performance on any host machine
Can accommodate single or double pad configurations to lift a variety of material weights and sizes
Adjustable spreader bar for double pads extends from 61” to 85” (outside to outside of seal channel)
Mounting plates designed to attach quickly and easily to most skid and track steer models
Also compatible with small excavators and cranes using clevis hook connection
Removable legs for storage

CM 3

6,600 lb (3 tonne) lift capacity

L 71” (1,803 mm) x H 31.5” (800 mm) x W 40” (1,016 mm)

Weight 499 lb (226 kg)

STANDARD PAD OPTIONS*


CM2424	2,700 lb (1,225 kg) 24” x 24” (610 x 610 mm) inner/ 28” x 28” (711 x 711 mm) outer Weight 94 lb (43 kg)
CM3030	4,320 lb (1,960 kg) 30” x 30” (762 x 762 mm) inner/ 34” x 34” (864 x 864 mm) outer Weight 146 lb (66 kg)
CM3636	6,220 lb (2,821 kg) 36” x 36” (914 x 914 mm) inner/40” x 40” (1,061 x 1,016 mm) outer Weight 200 lb (91 kg)

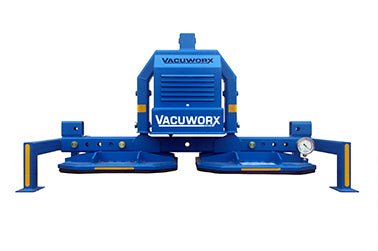

Shown with optional Spreader Beam and 2 flat pads

Parts & Accessories


PT3000‑700A	HLOK Tough Seal™, 10 ft (3 m)
PT7401‑002	SL/CM Vacuum Filter Element
PT7600‑100	SL/CM 12V Rechargeable Battery
PT7600‑025A	SL/CM Battery Charger
PT8300‑500A	SL/CM Mounting Assembly for Standard Skid Steer (side mount)
PT8301‑100A	Pad Beam for Dual or Single Pad Assembly
PT8301‑110A	Pad Beam for Single Pad Assembly

Flat and pipe pads sold separately

Product Flyer Quick Start Guide Operation Manual
