SL Series

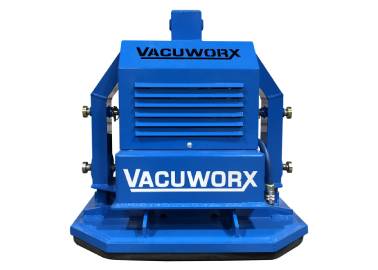

THE SL 2 SUBCOMPACT VACUUM LIFTING SYSTEM is the ultimate attachment — lightweight and extremely versatile, the system has been updated with an improved hydraulic systems and modular pads to work with more machines and for more applications! Featuring all-aluminum construction, the patent pending design runs off the host machine’s hydraulic system and can be easily attached in minutes to lift steel plate, saw-cut concrete, granite and marble slabs, landscape pavers and more! In addition, quick-connect hydraulic hoses make switching between attachments fast and easy so you can maximize productivity on the job. Perfect for floor, sidewalk, driveway, road and landscaping projects.
  • Available with manual or wireless remote control
  • Hydraulically driven vacuum pump operates using the auxiliary hydraulics from the host machine (Minimum 10 GPM required with maximum 3,000 PSI)
  • Includes quick-connect hydraulic hoses and factory pre-set flow control valve to ensure optimal performance
  • Universal mounting plates allow easy attachment to most skid steer models
  • All system components are fabricated from high quality aluminum to maximize overall lifting capacity of the host machine
  • Designed to lift concrete, marble, granite, metal, steel, iron and landscape pavers
  • Also works with a variety of mini-excavators or small cranes using clevis hook connection
SL Series

SL 2

2,700 lb (1.25 tonne) lift capacity

L 23” (584 mm) x H 25” (635 mm) x W 29” (737 mm)

Weight 125 lb (57 kg) w/o plate

STANDARD PAD OPTIONS*

SL2‑2424 2,700 lb (1,225 kg) lift capacity
24” x 24” (610 x 610 mm) inner/28” x 28” (711 x 711 mm) outer
Weight 43 lb (20 kg)
SL2‑1236 1,200 lb (544 kg) lift capacity
12” x 36” (305 x 914 mm) inner/16” x 40” (406 x 1016 mm) outer
Weight 26 lb (12 kg)

Parts & Accessories

PT3000‑700A HLOK Tough Seal™, 10 ft (3 m)
PT7401‑002 SL/CM Vacuum Filter Element
PT7600‑100 SL/CM 12V Rechargeable Battery
PT7600‑025A SL/CM Battery Charger
PT8300‑400A PS/SL Mounting Assembly for Mini Skid Steer (top mount)
PT8300‑500A SL/CM Mounting Assembly for Standard Skid Steer (side mount)
